Checkly Agent Configuration

The Checkly Agent is a lightweight container that executes monitoring checks within your Private Location. This guide covers advanced configuration options, environment variables, security settings, and production deployment practices.

Environment Variables

Configure your Checkly Agent using these environment variables:

Essential Configuration

Variable	Description	Default
`API_KEY`	Required. Private Location API key for agent authentication	-
`JOB_CONCURRENCY`	Number of concurrent checks (1-10)	`1`
`LOG_LEVEL`	Agent logging verbosity	`INFO`

Network and Proxy Configuration

Variable	Description
`HTTPS_PROXY`	HTTPS proxy for agent management traffic
`HTTP_PROXY`	HTTP proxy for agent management traffic
`USE_OS_DNS_RESOLVER`	Use system DNS instead of network DNS

These proxy settings apply to agent management traffic to Checkly’s API. For check-specific proxy configuration, see the Proxy Setup guide.

Security and TLS Configuration

Variable	Description
`NODE_EXTRA_CA_CERTS`	Path to additional CA certificates
`NODE_TLS_REJECT_UNAUTHORIZED`	Allow self-signed certificates (not recommended)

Production Deployment Examples

Docker with Resource Limits

docker run \
  --name checkly-agent-prod \
  --restart unless-stopped \
  --memory="4g" \
  --cpus="2" \
  -e API_KEY="pl_abc123..." \
  -e JOB_CONCURRENCY=5 \
  -e LOG_LEVEL="INFO" \
  --log-driver json-file \
  --log-opt max-size=100m \
  --log-opt max-file=3 \
  -d checkly/agent:6.0.3

Docker Compose

version: '3.8'
services:
  checkly-agent:
    image: checkly/agent:6.0.3
    container_name: checkly-agent-prod
    restart: unless-stopped
    environment:
      - API_KEY=${CHECKLY_API_KEY}
      - JOB_CONCURRENCY=5
      - LOG_LEVEL=INFO
    deploy:
      resources:
        limits:
          memory: 4G
          cpus: '2'
        reservations:
          memory: 2G
          cpus: '1'
    logging:
      driver: json-file
      options:
        max-size: "100m"
        max-file: "3"
    networks:
      - monitoring

networks:
  monitoring:
    driver: bridge

Systemd Service

Create /etc/systemd/system/checkly-agent.service:

[Unit]
Description=Checkly Agent
After=docker.service
Requires=docker.service

[Service]
Type=oneshot
RemainAfterExit=yes
ExecStartPre=/usr/bin/docker pull checkly/agent:6.0.3
ExecStart=/usr/bin/docker run \
  --name checkly-agent \
  --restart unless-stopped \
  --memory="4g" \
  --cpus="2" \
  -e API_KEY=%i \
  -e JOB_CONCURRENCY=5 \
  -d checkly/agent:6.0.3
ExecStop=/usr/bin/docker stop checkly-agent
ExecStopPost=/usr/bin/docker rm checkly-agent

[Install]
WantedBy=multi-user.target

Enable and start:

sudo systemctl enable checkly-agent@"pl_your_api_key"
sudo systemctl start checkly-agent@"pl_your_api_key"

Local Development Setup

For local testing and development, use Docker Desktop to bridge to localhost services:

# Start agent for local development
docker run \
  -e API_KEY="pl_dev_key..." \
  -e LOG_LEVEL="DEBUG" \
  -e JOB_CONCURRENCY=1 \
  --name checkly-agent-dev \
  -d checkly/agent:latest

# Test local service (use host.docker.internal for localhost access)
curl -X POST https://api.checklyhq.com/v1/checks \
  -H "Authorization: Bearer your_api_token" \
  -d '{
    "name": "Local API Test",
    "type": "api",
    "request": {
      "method": "GET",
      "url": "http://host.docker.internal:3000/health"
    },
    "privateLocations": ["your-dev-location"]
  }'

Use host.docker.internal instead of localhost to access services running on your host machine from within Docker containers.

Agent Lifecycle Management

Monitoring Agent Health

Check agent status and logs:

# View running agents
docker ps --filter "ancestor=checkly/agent"

# Check agent logs
docker logs checkly-agent --tail 50 -f

# Monitor resource usage
docker stats checkly-agent

Healthy agent logs should show:

[checkly-agent] Starting Consumer c7495186-6f1e-4526-b173-14ee9ad21775
[checkly-agent] Agent connected to Private Location
[checkly-agent] No jobs. Waiting..
[checkly-agent] Executing check: api-health-check-123
[checkly-agent] Check completed successfully

Agent Updates

Production Update Strategy: Use caution with automatic updates. Pin specific versions in production and test updates in staging first.

Manual Updates

# 1. Pull latest image
docker pull checkly/agent:latest

# 2. Stop current agent
docker stop checkly-agent

# 3. Remove old container
docker rm checkly-agent

# 4. Start updated agent
docker run \
  -e API_KEY="pl_abc123..." \
  -e JOB_CONCURRENCY=5 \
  --name checkly-agent \
  -d checkly/agent:latest

# 5. Verify new agent
docker logs checkly-agent --tail 20

Automated Updates with Watchtower

# Install Watchtower for automatic container updates
docker run -d \
  --name watchtower \
  --restart unless-stopped \
  -v /var/run/docker.sock:/var/run/docker.sock \
  containrrr/watchtower \
  --schedule "0 0 4 * * SUN" \
  --cleanup \
  checkly-agent

# Manual update trigger
docker run --rm -v /var/run/docker.sock:/var/run/docker.sock \
  containrrr/watchtower --run-once checkly-agent

Rolling Updates for Multiple Agents

#!/bin/bash
# rolling-update.sh - Update agents one by one

AGENTS=("checkly-agent-1" "checkly-agent-2" "checkly-agent-3")
API_KEY="pl_your_api_key"

for agent in "${AGENTS[@]}"; do
  echo "Updating $agent..."

  # Pull latest image
  docker pull checkly/agent:latest

  # Start new agent with temporary name
  docker run \
    -e API_KEY="$API_KEY" \
    -e JOB_CONCURRENCY=5 \
    --name "${agent}-new" \
    -d checkly/agent:latest

  # Wait for new agent to connect
  sleep 30

  # Stop and remove old agent
  docker stop "$agent"
  docker rm "$agent"

  # Rename new agent
  docker rename "${agent}-new" "$agent"

  echo "$agent updated successfully"
  sleep 10  # Brief pause between updates
done

API Key Management

Key Rotation Process

Rotate API keys regularly for security:

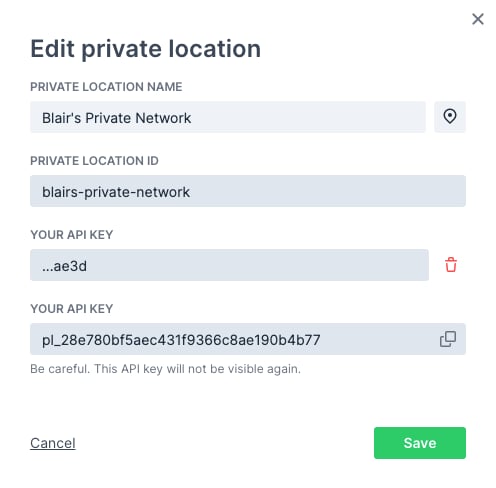

Create a new API key for your Private Location

Add second key in the Checkly UI
Deploy new agents with the new key
Verify connectivity of new agents
Remove old agents using the old key
Delete old key from Checkly UI

Zero-Downtime Key Rotation

#!/bin/bash
# key-rotation.sh

OLD_KEY="pl_old_key..."
NEW_KEY="pl_new_key..."

# Start new agents with new key
for i in {1..3}; do
  docker run \
    -e API_KEY="$NEW_KEY" \
    -e JOB_CONCURRENCY=5 \
    --name "checkly-agent-new-$i" \
    -d checkly/agent:latest
done

# Wait for new agents to connect
echo "Waiting for new agents to connect..."
sleep 60

# Stop old agents
for i in {1..3}; do
  docker stop "checkly-agent-old-$i"
  docker rm "checkly-agent-old-$i"
done

# Rename new agents
for i in {1..3}; do
  docker rename "checkly-agent-new-$i" "checkly-agent-$i"
done

echo "Key rotation completed successfully"

Finding API Keys in Running Containers

# Inspect container for API key
docker inspect checkly-agent | grep -A5 -B5 "API_KEY"

# List all containers with their API keys
docker ps --format "table {{.Names}}\t{{.Image}}" | while read name image; do
  if [[ $image == *"checkly/agent"* ]]; then
    key=$(docker inspect $name | jq -r '.[0].Config.Env[]' | grep API_KEY | cut -d'=' -f2)
    echo "$name: ${key: -8}"  # Show last 8 characters
  fi
done

Agent Versions and Runtime Compatibility

Each agent version supports a specific Checkly runtime:

Runtime Version	Agent Version	Features
2025.04	6.0.3+	Latest Playwright, Node.js 20
2024.09	5.0.0+	Playwright Test Suites
2024.02	3.4.0+	Enhanced security
2023.09	3.2.0+	Improved performance
2023.02	2.0.0+	Core functionality
2022.10	1.3.9	Legacy support

Version Pinning: Always pin specific agent versions in production. Use checkly/agent:6.0.3 instead of checkly/agent:latest to ensure consistent behavior.

Checking Runtime Compatibility

# Check agent version
docker exec checkly-agent cat /app/package.json | grep version

# Check supported runtime
docker exec checkly-agent node -e "console.log(process.env.RUNTIME_VERSION || 'Not set')"

# View agent capabilities
docker exec checkly-agent node -e "
  const pkg = require('/app/package.json');
  console.log('Agent version:', pkg.version);
  console.log('Node.js version:', process.version);
  console.log('Platform:', process.platform);
"

Troubleshooting

Agent Won’t Connect

Symptoms: Agent starts but doesn’t appear in Private Locations dashboard Solutions:

Check API key: Verify the key is correct and hasn’t been deleted
docker logs checkly-agent | grep -i "auth\|key\|error"

Verify network access: Ensure outbound HTTPS to agent.checklyhq.com

docker exec checkly-agent curl -I https://agent.checklyhq.com

Check proxy configuration: If using a proxy, verify settings
docker exec checkly-agent env | grep -i proxy

TLS Certificate Issues

Symptoms: SSL/TLS connection errors in logs Solutions:

Add enterprise CA certificates:

docker run \
  -v /path/to/ca.crt:/usr/local/share/ca-certificates/company.crt \
  -e NODE_EXTRA_CA_CERTS=/usr/local/share/ca-certificates/company.crt \
  -e API_KEY="pl_..." \
  -d checkly/agent:latest

Temporarily bypass TLS verification (not recommended for production):

docker run \
  -e NODE_TLS_REJECT_UNAUTHORIZED=0 \
  -e API_KEY="pl_..." \
  -d checkly/agent:latest

Resource and Performance Issues

Symptoms: Slow check execution, out of memory errors Solutions:

Optimize job concurrency based on available memory:

# For 4GB memory with mixed workloads
docker run \
  -e JOB_CONCURRENCY=2 \
  --memory="4g" \
  -e API_KEY="pl_..." \
  -d checkly/agent:latest

Monitor resource usage:
docker stats checkly-agent --no-stream

Check for memory leaks:

# Monitor memory usage over time
while true; do
  docker stats checkly-agent --no-stream --format "table {{.MemUsage}}\t{{.CPUPerc}}"
  sleep 30
done

Check Execution Issues

Symptoms: Checks fail only from private location Solutions:

Test network connectivity:

# Test from within agent container
docker exec checkly-agent curl -I http://your-internal-service.local

Check DNS resolution:

docker exec checkly-agent nslookup your-service.internal

Enable OS DNS resolver for internal services:

docker run \
  -e USE_OS_DNS_RESOLVER=true \
  -e API_KEY="pl_..." \
  -d checkly/agent:latest

Best Practices

Security

Pin specific agent versions in production
Rotate API keys regularly (quarterly)
Use secrets management for API keys
Enable TLS certificate validation
Monitor agent access logs

Reliability

Deploy at least 2 agents per location
Use container restart policies
Implement health checks
Monitor agent connectivity
Plan for rolling updates

Performance

Right-size job concurrency for your workload
Monitor memory usage patterns
Use resource limits in production
Scale horizontally when needed
Profile check execution times

Operations

Centralize logging and monitoring
Automate agent deployment
Document configuration decisions
Test updates in staging first
Maintain update procedures

Getting Started

Detect

Communicate

Resolve

Integrations

Agent Configuration

Checkly Agent Configuration

Environment Variables

Essential Configuration

Network and Proxy Configuration

Security and TLS Configuration

Production Deployment Examples

Docker with Resource Limits

Docker Compose

Systemd Service

Local Development Setup

Agent Lifecycle Management

Monitoring Agent Health

Agent Updates

Manual Updates

Automated Updates with Watchtower

Rolling Updates for Multiple Agents

API Key Management

Key Rotation Process

Zero-Downtime Key Rotation

Finding API Keys in Running Containers

Agent Versions and Runtime Compatibility

Checking Runtime Compatibility

Troubleshooting

Agent Won’t Connect

TLS Certificate Issues

Resource and Performance Issues

Check Execution Issues

Best Practices

​Checkly Agent Configuration

​Environment Variables

​Essential Configuration

​Network and Proxy Configuration

​Security and TLS Configuration

​Production Deployment Examples

​Docker with Resource Limits

​Docker Compose

​Systemd Service

​Local Development Setup

​Agent Lifecycle Management

​Monitoring Agent Health

​Agent Updates

​Manual Updates

​Automated Updates with Watchtower

​Rolling Updates for Multiple Agents

​API Key Management

​Key Rotation Process

​Zero-Downtime Key Rotation

​Finding API Keys in Running Containers

​Agent Versions and Runtime Compatibility

​Checking Runtime Compatibility

​Troubleshooting

​Agent Won’t Connect

​TLS Certificate Issues

​Resource and Performance Issues

​Check Execution Issues

​Best Practices

Checkly Agent Configuration

Environment Variables

Essential Configuration

Network and Proxy Configuration

Security and TLS Configuration

Production Deployment Examples

Docker with Resource Limits

Docker Compose

Systemd Service

Local Development Setup

Agent Lifecycle Management

Monitoring Agent Health

Agent Updates

Manual Updates

Automated Updates with Watchtower

Rolling Updates for Multiple Agents

API Key Management

Key Rotation Process

Zero-Downtime Key Rotation

Finding API Keys in Running Containers

Agent Versions and Runtime Compatibility

Checking Runtime Compatibility

Troubleshooting

Agent Won’t Connect

TLS Certificate Issues

Resource and Performance Issues

Check Execution Issues

Best Practices
